Tree Shaped Cell Tower Anti Rust Alloy 35m Mobile Network Rural Areas Natural Appearance

Name: Tree Shaped Cell Tower Anti Rust Alloy 35m Mobile Network Rural Areas Natural Appearance
Brand: Jiayao Co., Ltd.
SKU: Torre de árboles biónicos
Price: 50.00 USD
Availability: InStock

Todos los productos

Torre de acero angular de 3 patas
(62)

Torre de acero angular de 4 patas
(82)

Torre de acero tubular de 3 patas
(63)

Torre del monopolio
(75)

Torre de alambre de cableado
(63)

Torre de vigilancia
(15)

Torre de árboles biónicos
(61)

Torre de transmisión de energía
(18)

torre telescópica
(12)

Estoy en línea para chatear ahora

Tree Shaped Cell Tower Anti Rust Alloy 35m Mobile Network Rural Areas Natural Appearance

Ampliación de imagen : Tree Shaped Cell Tower Anti Rust Alloy 35m Mobile Network Rural Areas Natural Appearance

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Jiayao
Certificación:	ISO9001:2008 COC
Número de modelo:	Torre de árboles biónicos

Pago y Envío Términos:

Cantidad de orden mínima:	4 toneladas
Precio:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
Detalles de empaquetado:	Embalado en cajas de madera o empaquetado con láminas galvanizadas
Tiempo de entrega:	15 dias
Condiciones de pago:	LC, T/T
Capacidad de la fuente:	500 toneladas por mes

Contacto Ahora Charle

Tree Shaped Cell Tower Anti Rust Alloy 35m Mobile Network Rural Areas Natural Appearance

descripción

Nombre del producto:	Torre de árbol biónico de 35 m	Material:	Se aplicarán los siguientes requisitos:
Tuercas y tornillos:	Grado 8.8/6.8/4.8	Certificación:	ISO9001:2008 COC
Altura:	10-40 metros	Estándar:	ANSI/TIA-222-G/H/F
Velocidad del viento:	0-300 km/h	Estándar de galvanización:	ASTM A123/ ISO 1461
Impacto ambiental:	Respetuoso del medio ambiente	Tratamiento anticorrosión:	galvanizado en caliente
Vida:	Más de 20 años	Soldadura:	AWSD 1.1
Material de embalaje:	Madera	Funciones adicionales:	Sensores integrados para el monitoreo de la calidad del aire
Accesorios:	Ancla de tierra	Lugares de instalación:	Áreas urbanas, parques y zonas industriales.
Estética:	Apariencia natural y realista	Solicitud:	Apto tanto para zonas urbanas como rurales

Tree Shaped Cell Tower Anti Rust Alloy 35m Mobile Network Rural Areas Natural Appearance 0

JIAYAO CO., LTD

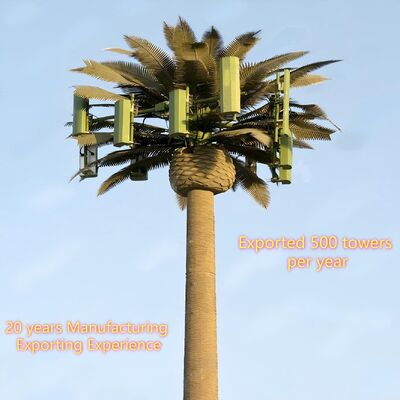

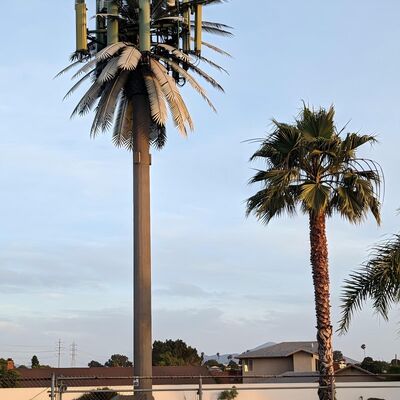

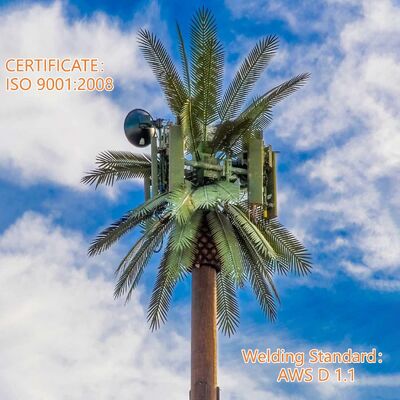

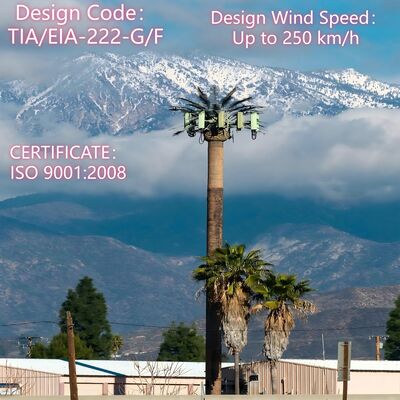

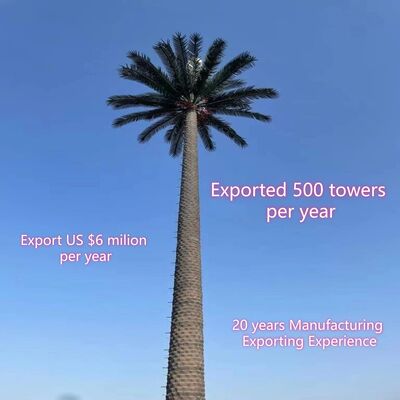

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

Core Structural & Design Features

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.
Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

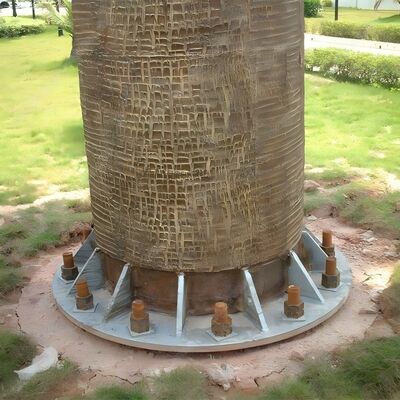

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.

2.Product Detail
